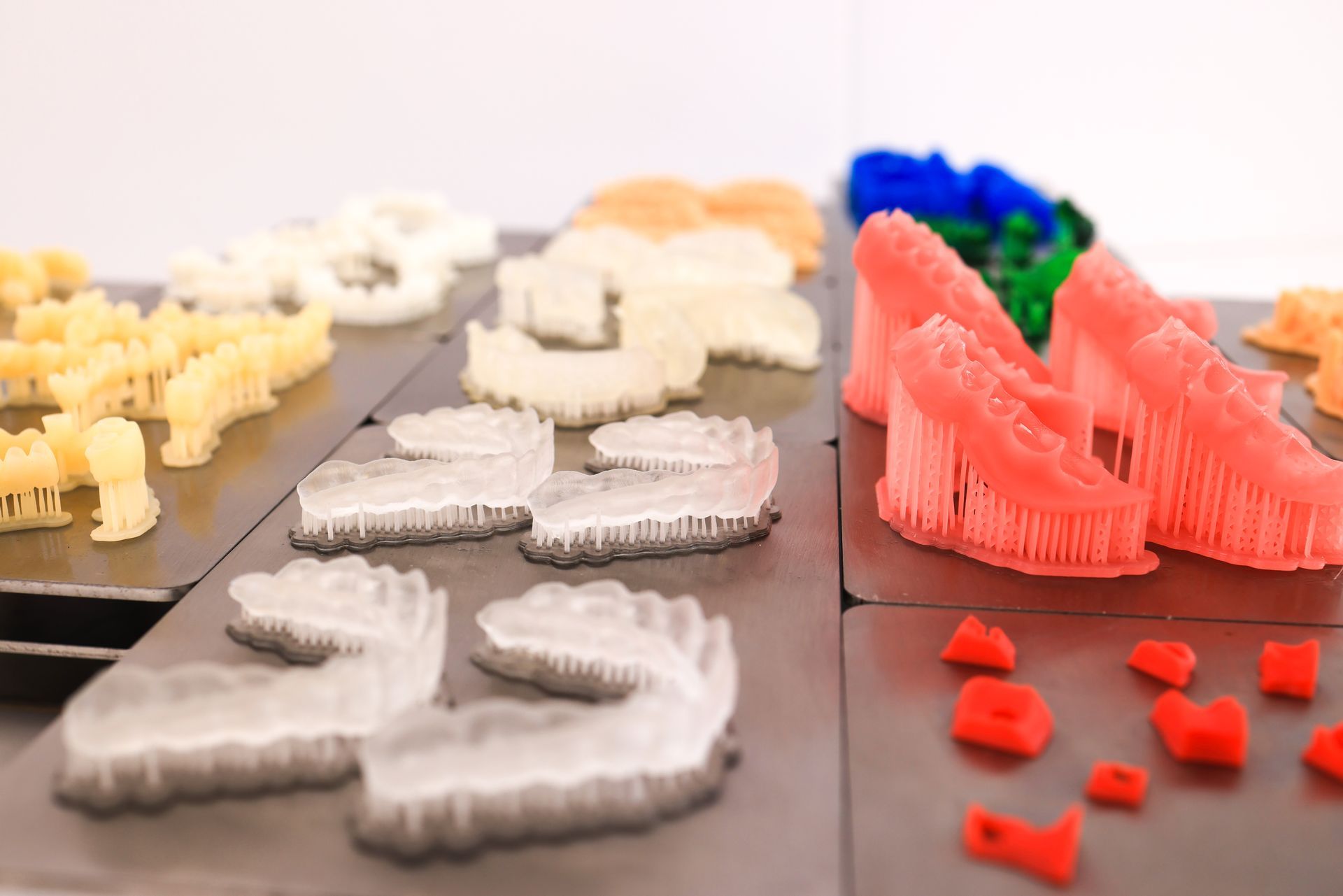

This guide is designed to assist dental technicians and dentists in utilizing Shape X for 3D try-in purposes, specifically for full contour crowns and restorations. It provides instructions on evaluating shapes, occlusal relations between jaws, and overall fitting. Additionally, the workflow outlined in this guide can be applied for producing dentures. It is important to note that Shape X is not suitable for intraoral use and should only be utilized with dental models.

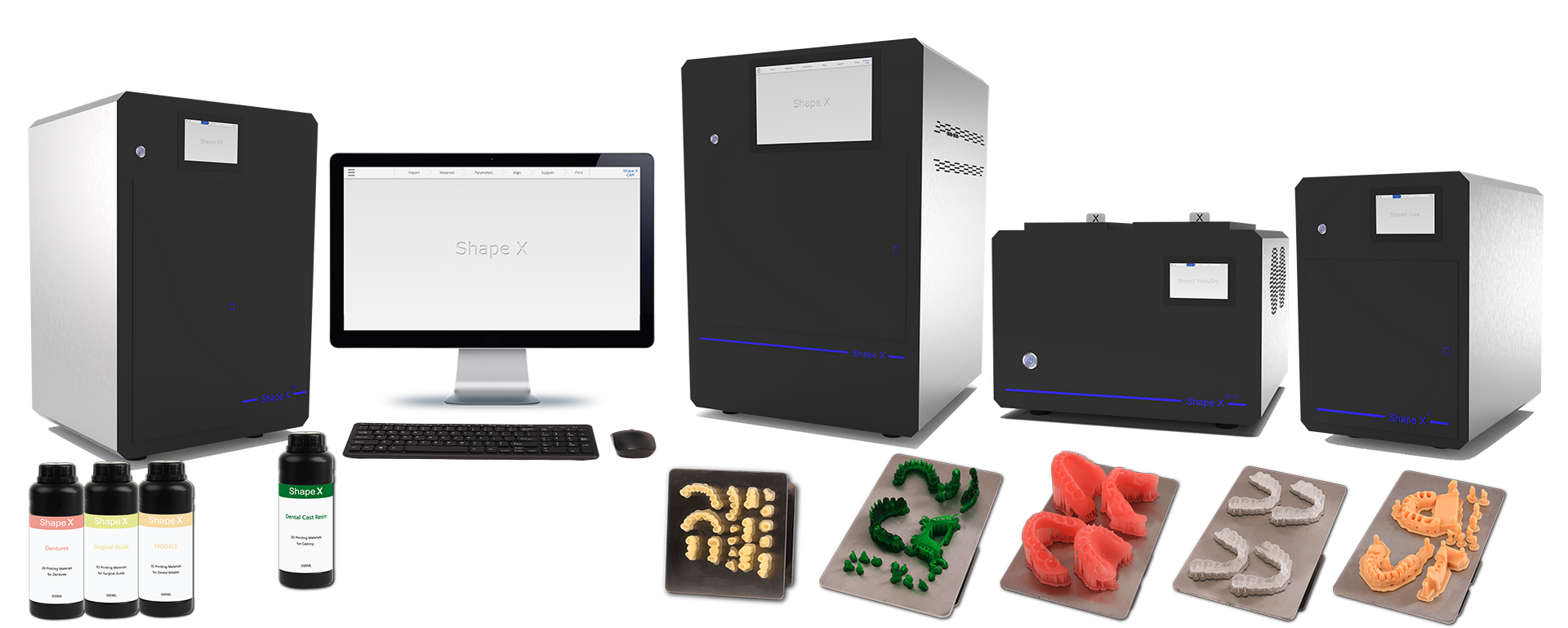

Required Hardware
Required Software
Required Materials
1 > Scan

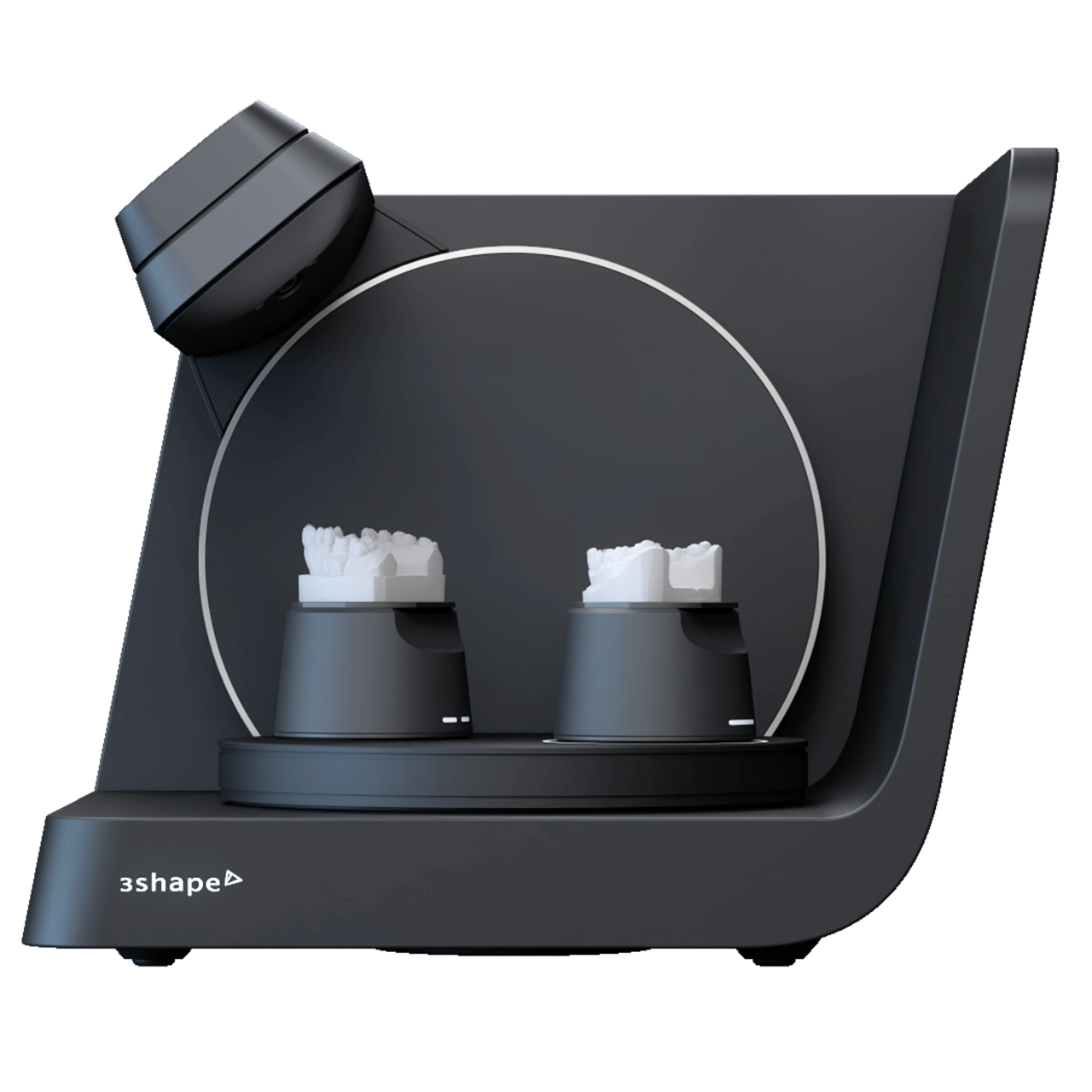

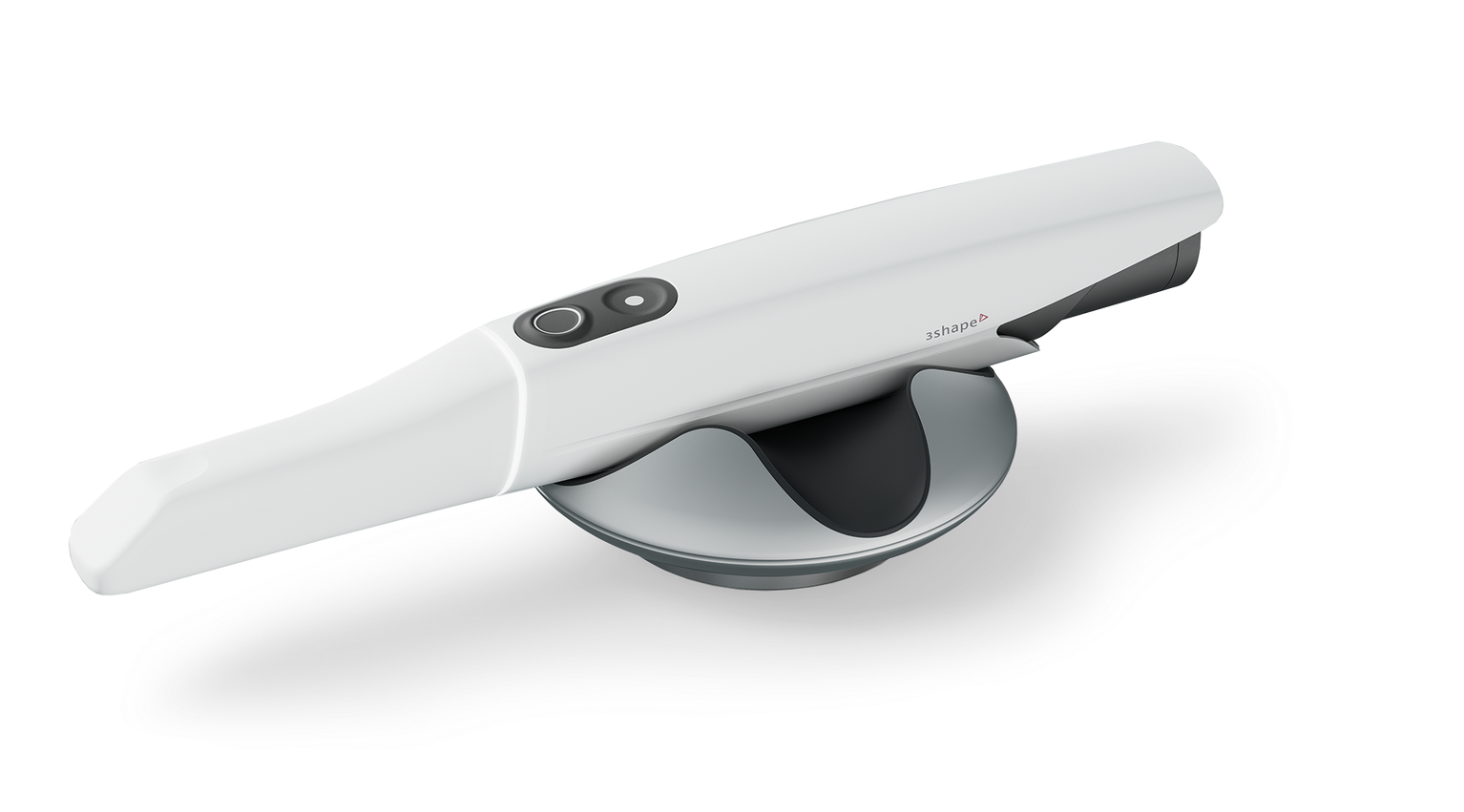

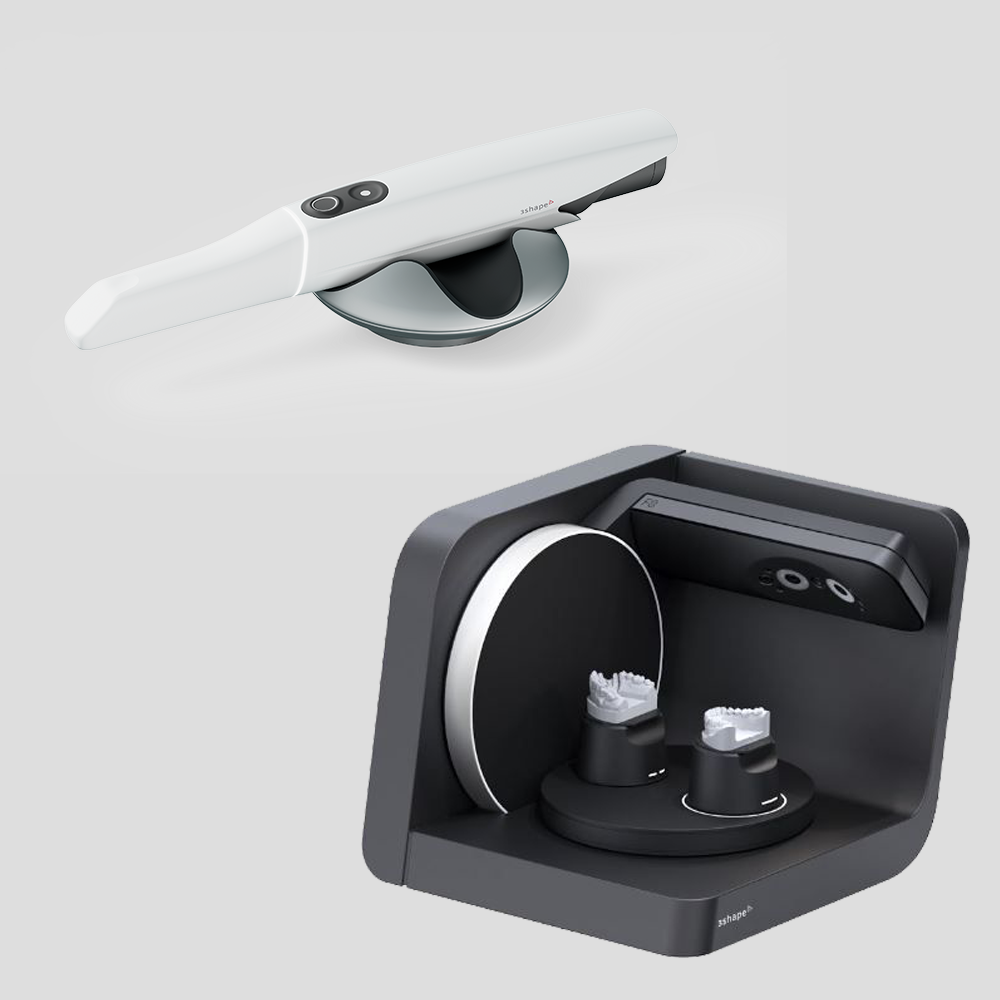

In order to design a dental prosthetic using dental CAD software, it is necessary to obtain a digital representation of the patient's anatomy. This can be accomplished by either directly scanning the patient's mouth using a 3D intraoral scanner or by scanning a physical impression or poured model using a desktop 3D scanner.
2 > Design
This application guide will provide an overview of two popular dental software options, namely 3Shape Dental System and ExoCAD, which are utilized for digitally designing dental crowns and restorations. It will outline the key parameters of each software.
3Shape Parameters
Minimum thickness | 1.0 mm |
---|---|
Minimum thickness Occlusal | 1.5 mm |
Cement gap | 0.02 mm |
Extra cement gap | 0.04 mm |
Distance from margin line | 1 mm |
Overlay | |
Margin line offset | 0.15 mm |
ExoCad Parameters
Minimum thickness | 1.0 mm |
---|---|
Gap | 0.07mm |
From margin | 1 mm |
Additional spacing | 0.02 mm |
Border | |
Horizontal | 0.15 mm |
Minimum thickness Occlusal | 1.5 mm |
Most dental design software typically generates a manufacturing file in the .stl format. To proceed, you need to find this file and transfer it to Shape X 3D Printer.
3 > Print

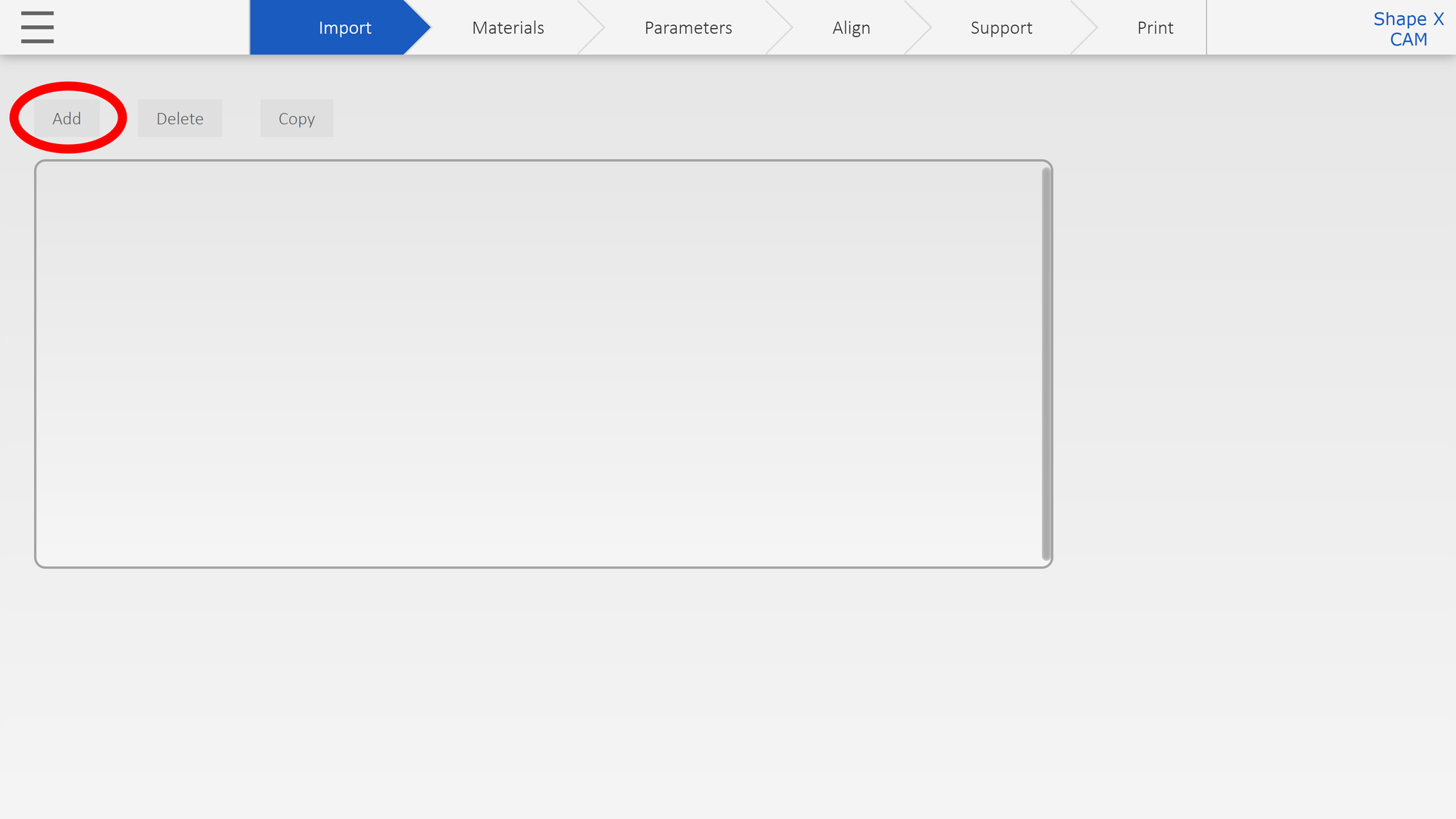

> Import your STL File with Add Button

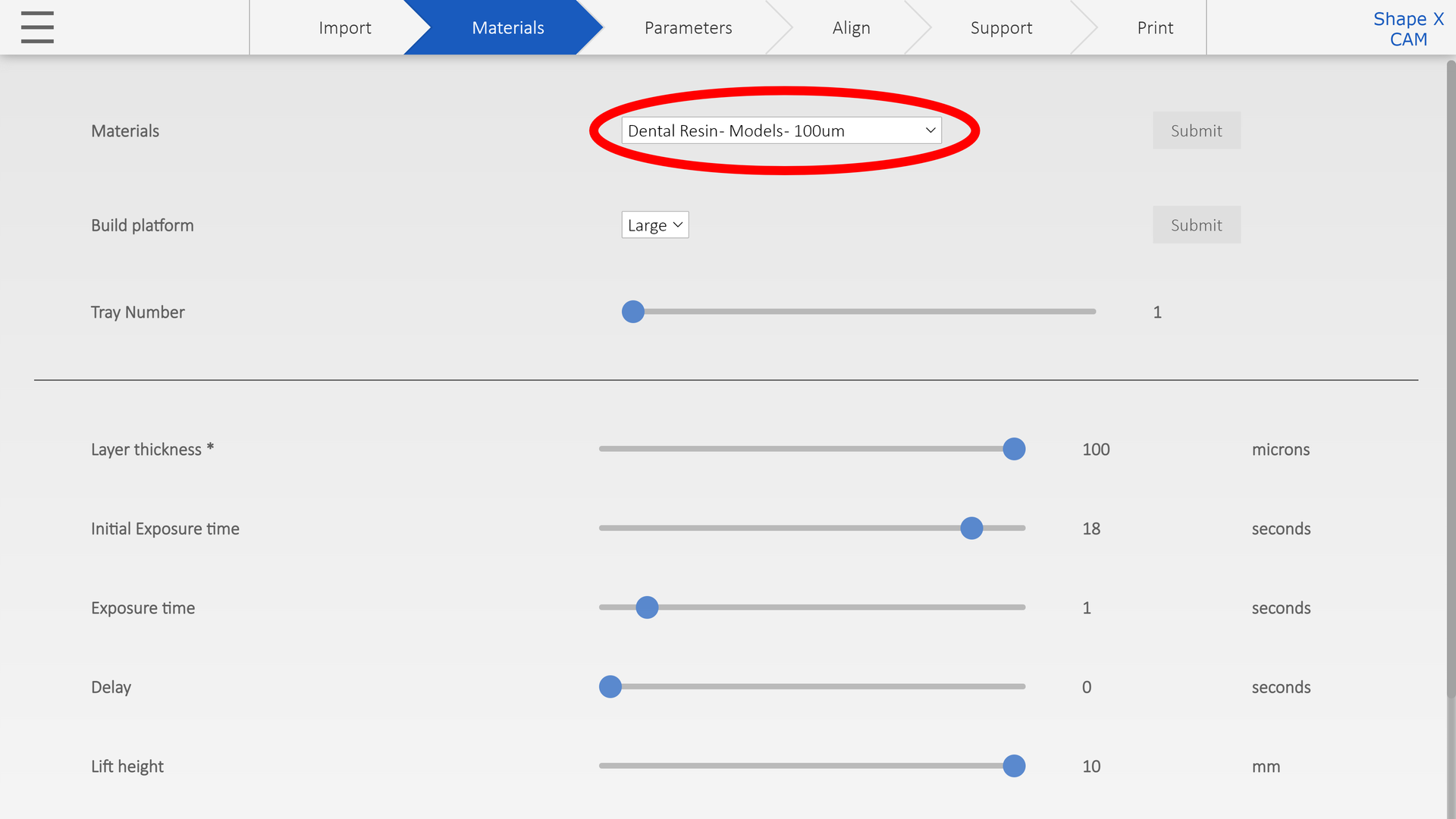

> Choose your required materials "Try - In Resin " and required layer thickness and Press Submit.
Choose your job Parameters "Crowns & Bridge" or "Dentures" and press Submit.
> Use Automatic nesting, move, rotate to align your crowns to desired position

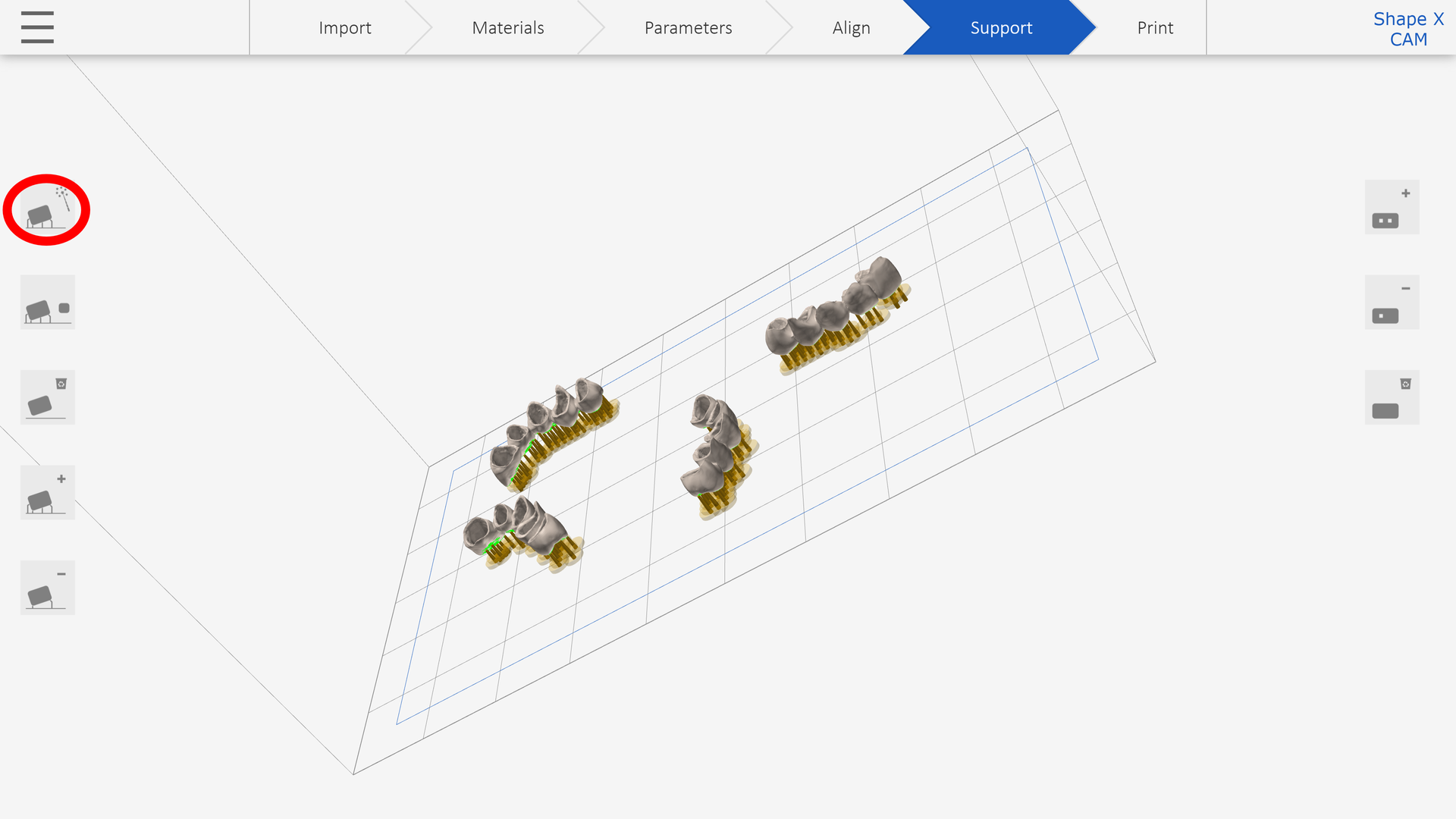

> Use Automatic support generator to generate support structure for crowns & Bridges. You may also use Add / Remove support to modify proposed support.

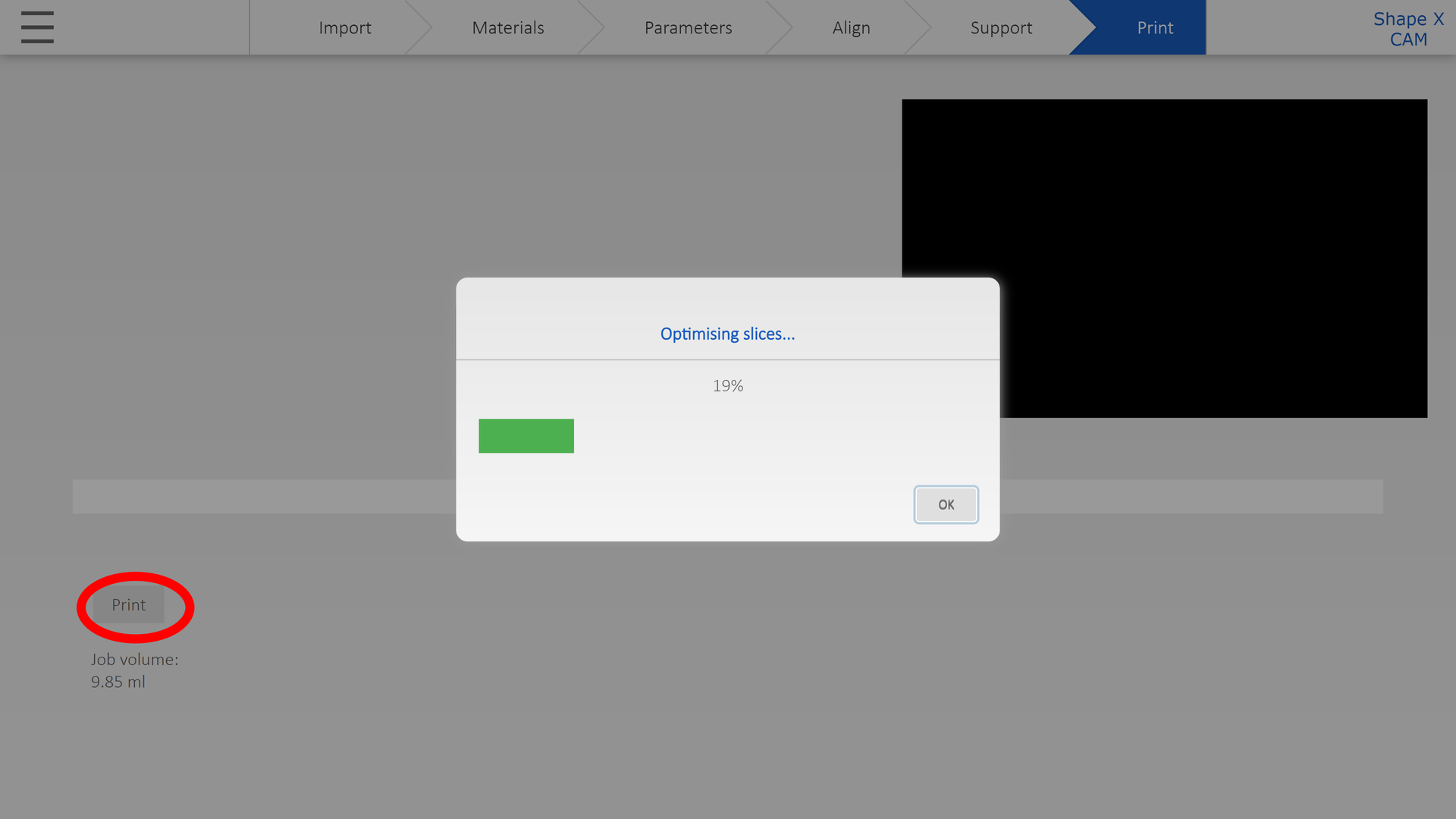

> Click on "Start" to generate slices. Then "Print" * to start print process.
* Before Press "Print" button:
> Please ensure that the black screw of the build platform and the set of two screws that hold the resin container are securely tightened.
> Carefully inspect both the build platform and the resin container film to ensure there is no cured resin present.
> Ensure that the resin temperature falls within the recommended range of 25 to 35°C. Preheat the resin if necessary and mix it thoroughly with Shape X RP. Before use, clean the resin container with a filtration paper if it has been previously used. Additionally, ensure that the resin is not expired and that the quantity in the container is above the indicated minimum level.
4 > Post Processing
It is important to consistently wear gloves when working with uncured resin and its corresponding parts.
4.1 Part Removal

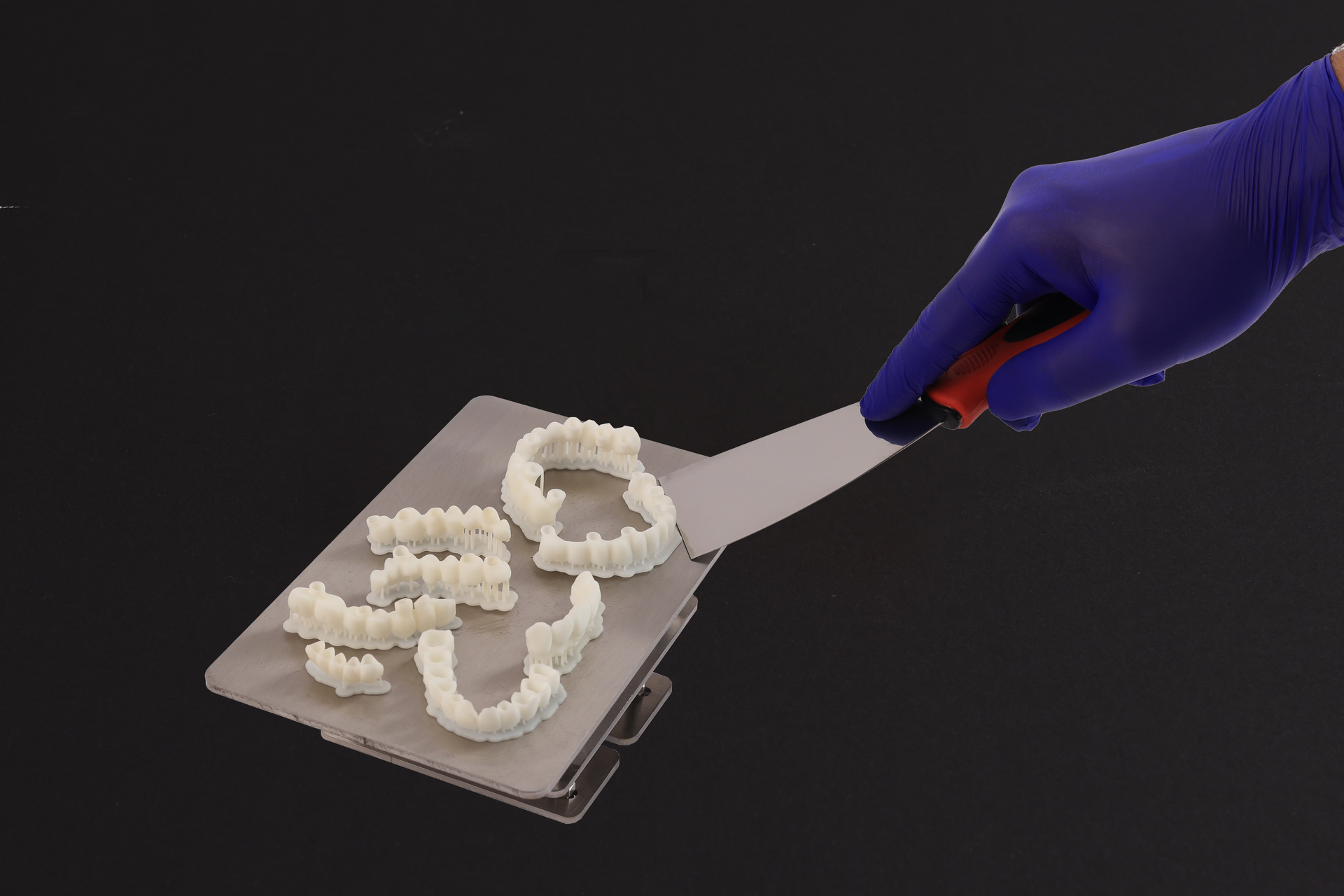

To remove the printed parts from the build platform, utilize a scraping tool positioned beneath the part raft. By rotating the tool, gently separate the parts from the platform.
4.2 Washing

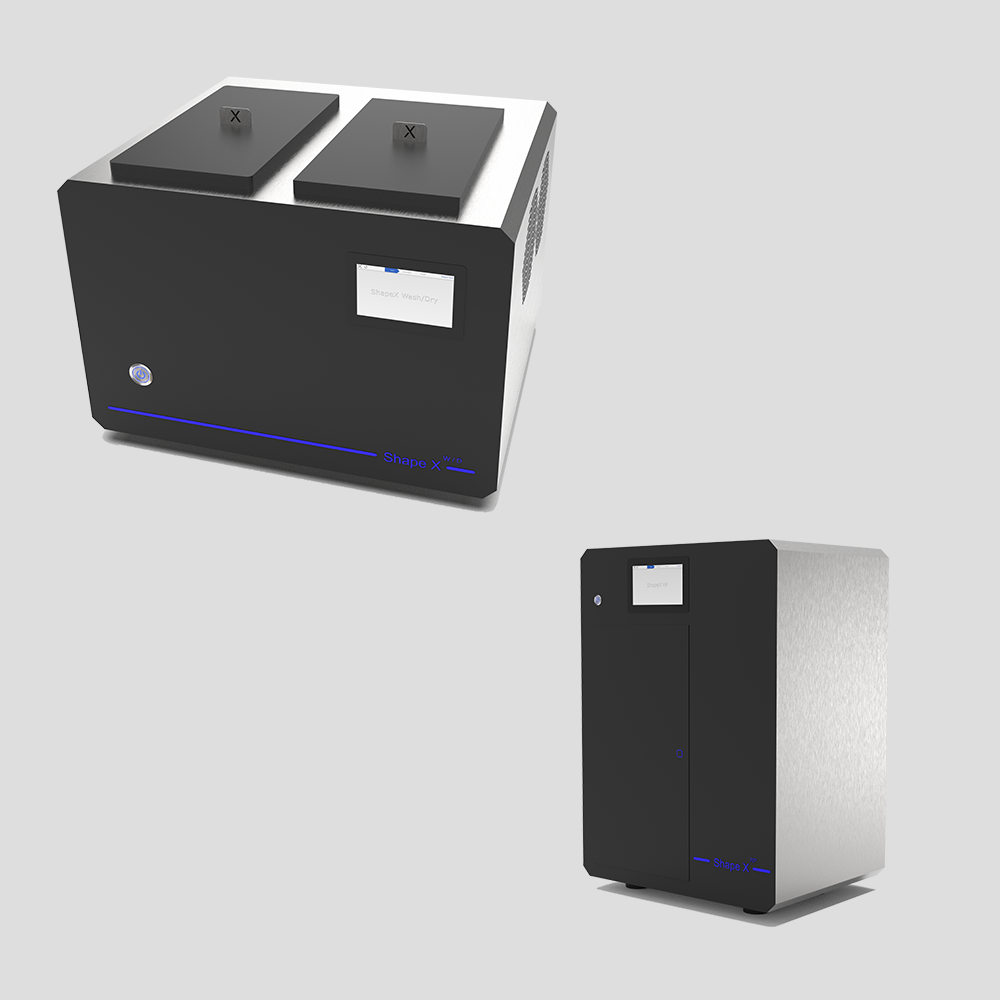

In a well-ventilated area and while wearing appropriate protective masks and gloves, submerge the printed parts in an isopropyl alcohol (IPA, ≥99%) solution within the Shape X Wash/Dry apparatus. Allow the parts to undergo a 3-minute washing cycle.
or submerge the printed parts in an isopropyl alcohol (IPA, ≥99%) solution within a black box. Allow the parts to undergo a 6-minute washing cycle.
4.2 Drying
Utilize compressed air to aid in the drying process of the parts, facilitating a quick inspection of unwashed resin remaining after using Shape X Wash/Dry machine.
4.3 Curing
1> While keeping the raft and supports intact, position the printed parts in the Shape X Cure device with the raft side facing downwards. Proceed to post-cure the parts for a duration of 2 minutes.
2> Remove Support structure and raft with cutting disc.
3> Clean Parts from white powder with IPA, then compressed air.
4> Position the printed parts in the Shape X Cure device. Proceed to post-cure the parts for a duration of 2 minutes.
4.4 Finishing
No additional finishing is necessary except for polishing the area where the support structure is attached to the part.
5 > Complete Job
You can now proceed with the fitting of the restorations or dentures, evaluating the occlusal relationship between the jaws. Additionally, you should carefully examine the overall design to ensure its quality and suitability.
